350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole

Name: 350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole
Brand: Kaienli
Price: 3 USD

Brand Name : Kaienli

Model Number : KPRDB-LAN

Certification : Available

Place of Origin : China

MOQ : 1 pieces

Price : USD 3-42 per piece (depends on the different types )

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : usually about 2 weeks, depends on which type and the quantity demand

Delivery Time : 2 or 3 weeks, depends on quantity and design

Packaging Details : Plastic film+PE bag+mesh packaging sleeve+sponge spacer+cardboard box+pallet

Product Name : KPRDB-LAN Pressure relief valve with standard cavity hole T-11A cartridge type pressure reducing valve

Cavity : T-11A

Rated pressure : 350 bar

Rated flow : maximum 40 L/Min

Valve Material : Steel

Brand : Kaienli

Temperature : -40℃～120℃ (standard nitrile rubber seal) Filtration: within NAS level 9

Production time : depends on the quantity

Packing : standard packing or as per your request

weight : 0.2kg

Contact Now

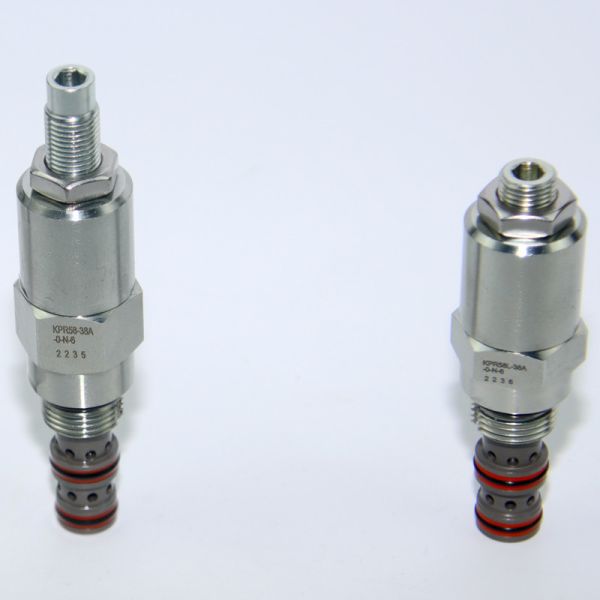

Product Pictures:

KPRDB-LAN Pressure relief valve with standard cavity hole T-11A cartridge type pressure reducing valve

Working Principle:
KPRDB type, under steady state, allows oil to flow in both directions ② and ①, while the spring chamber remains at the oil port ③ to drain oil. When the pressure at ① reaches the preset value of the valve, the valve core moves to limit the oil inflow at ②, thereby regulating the pressure at ①. In this mode, when the pressure at ① exceeds the pressure reduction set value, oil can also be drained from ① to ③. There is no noise in the decompression and overflow state.

350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole

Product technical data:

350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole

Product real pictures :

350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole

PTC Exhibition:

350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole

Company Exhibitions:

350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole

Our Certificate:

350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole

Product processing procedures:

350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole

Our new factory and workshop :

350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole

Our warehouse:

350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole

Shipment:

350 Bar Relief Pressure Reducing Valve Cartridge Type With Standard Cavity Hole

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block

Welcome your visit and inquiry !
